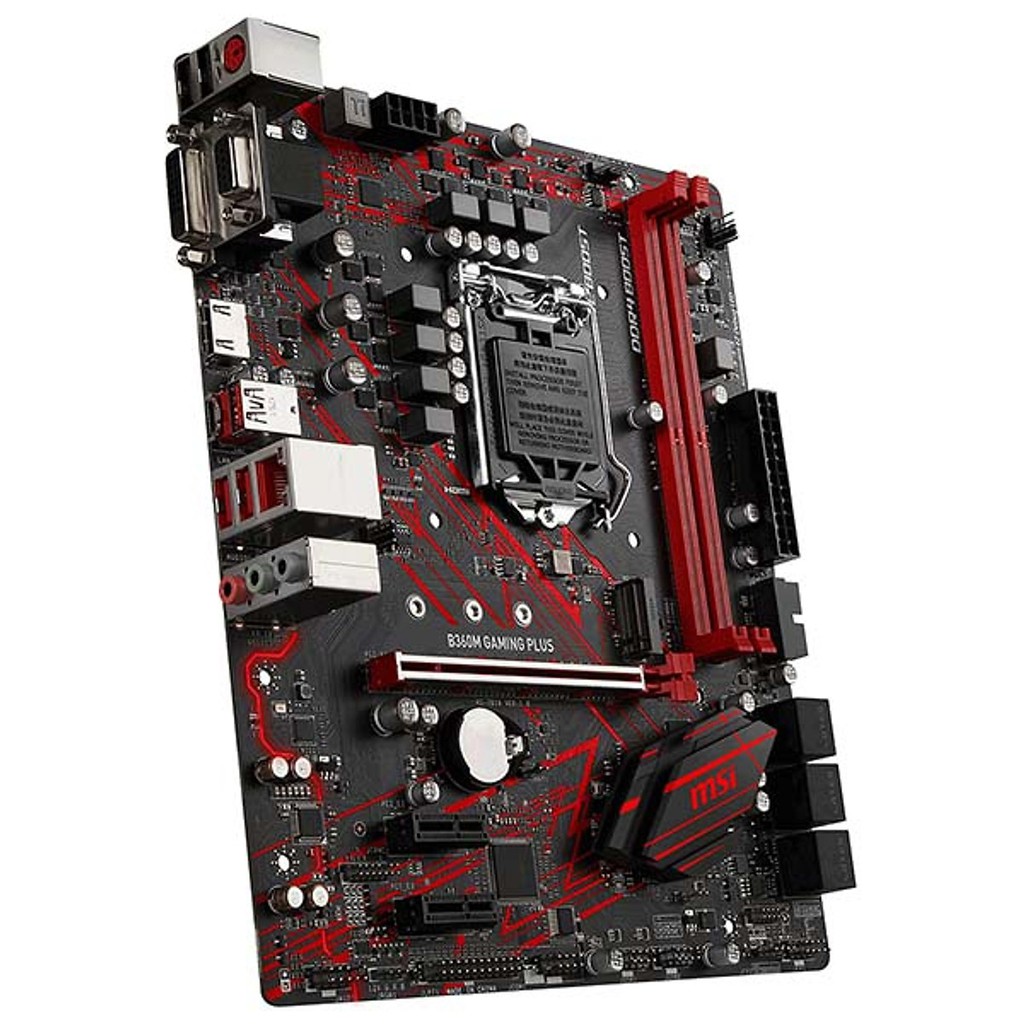

Bo Mạch Chủ-Mainboard MSI B360M Gaming plus

Giới thiệu Bo Mạch Chủ-Mainboard MSI B360M Gaming plus

Bo Mạch Chủ - Mainboard MSI B360M Gaming plus
Chipset: Intel B360

Socket LGA1151 v2

Bộ nhớ: Tối đa 32GB

Lưu trữ: M.2 x1, SATA3 x6

Cổng USB: Tối đa 1 USB Type-C, 5 USB 3.1, 6 USB 2.0

Âm thanh: 7.1

Kích thước: M-ATX
Tên gọi

MSI B360M GAMING PLUS

CPU hỗ trợ


Intel® Socket 1151 for 8th Generation Core™ Processors


Chipset / Socket

Intel® B360

Bộ nhớ (RAM)

- Dual Channel DDR4 Memory Technology
- 2 x DDR4 memory slots, support up to 64GB
- Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB*
- Supports Intel® Extreme Memory Profile (XMP) 2.0

Công nghệ đa GPU

• Không hỗ trợ

Khe cắm mở rộng

• 1 x PCI Express 3.0 x16 Slots
• 2 x PCI Express 3.0 x1 Slots

LAN / Wireless

• Intel I219-V Gigabit LAN controller

Âm thanh

• Realtek® ALC887 Codec

Cổng kết nối (Internal)

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 6 x SATA 6Gb/s connectors
• 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
• 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1 x 4-pin CPU fan connector
• 2 x 4-pin system fan connectors
• 1 x Front panel audio connector
• 1 x RGB LED connector
• 1 x Parallel port connector
• 1 x Serial port connector
• 2 x Front panel connectors
• 1 x TPM module connector
• 1 x Chassis Intrusion connector
• 1 x Clear CMOS jumper

Cổng kết nối (Back Panel)

• PS/2 Combo Port
• VGA
• LAN Port
• HD Audio Connectors
• USB 2.0 Port
• DVI-D
• HDMI
• USB 3.1 Gen1 Type A + C
• USB 3.1 Gen1

Công nghệ độc quyền

• DDR4 Boost
• Turbo M.2
• PCI-E Steel Armor
• Heavy plated heatsinks
• Audio Boost

Phụ kiện đi kèm

- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 3 x Screws for M.2 Sockets

Hệ điều hành khuyến nghị

• Windows® 10 64-bit

Chuẩn kích cỡ

• mATX Form Factor
