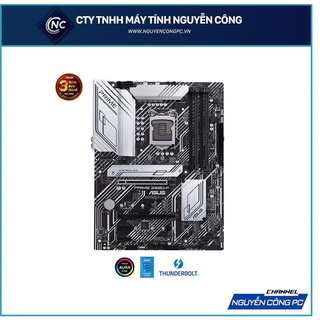

Bo Mạch Chủ ASUS PRIME Z590P/CSM

Giới thiệu Bo Mạch Chủ ASUS PRIME Z590P/CSM

CPU
Intel® Socket LGA1200 cho bộ vi xử lý Intel® Core™ thế hệ 11 & Intel® Core™ thế hệ 10, bộ vi xử lý Pentium® Gold và Celeron®
Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Bộ chip
Z590
Bộ nhớ
Kênh bộ nhớ:4DDR4 (Bộ nhớ kép)
Dung lượng bộ nhớ tối đa:128GB
5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem II

* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.

* 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively.

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

Đồ họa
1 x DisplayPort*
1 x HDMI 2.0
* Graphics specifications may vary between CPU types.

** Intel® 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates.

*** Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.

khe cắm mở rộng
1 x PCIe 4.0/3.0 x16 + 1 x PCIe 3.0 x16 (max. x4)
Intel® 11th & 10th Gen Processors*

1 x PCIe 4.0/3.0 x16 slot

- Intel® 11th Gen processors support PCIe 4.0 x16 or x8/x8 or x8/x4/x4 modes

- Intel® 10th Gen processors support PCIe 3.0 x16 or x8/x8 or x8/x4/x4 modes

Intel® Z590 Chipset

1 x PCIe 3.0 x16 slot (supports x4 mode)

2 x PCIe 3.0 x1 slots

* Supports PCIe bandwidth bifurcation for RAID on CPU function.

Lưu trữ
Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® 11th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110

- Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs

Intel® Z590 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)*

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

Raid function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.

To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.

* When a device in SATA mode is installed on the M.2_2 slot, SATA6G_2 port cannot be used.

Ethernet
1 x Realtek 2.5Gb Ethernet
Không dây & Bluetooth
V-M.2 slot only (Key E, CNVi & PCIe)*
USB
USB phía sau:6 c
