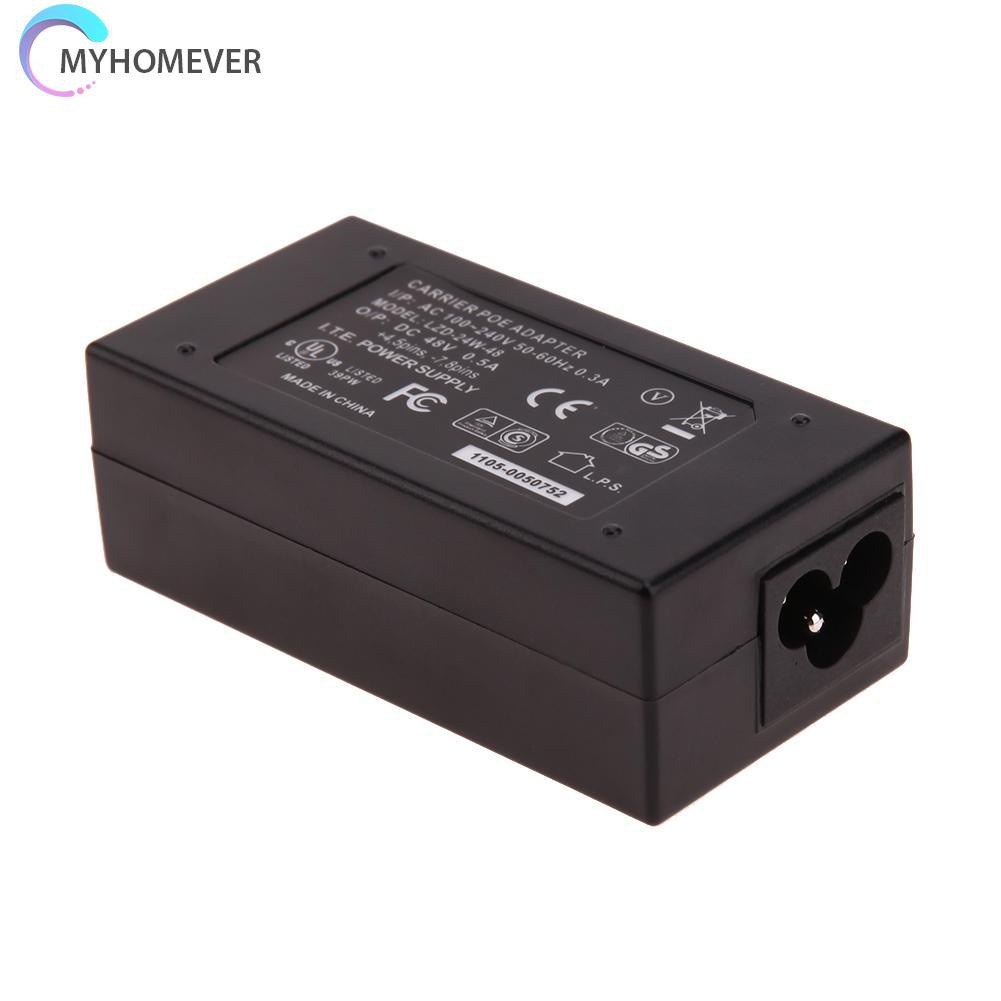

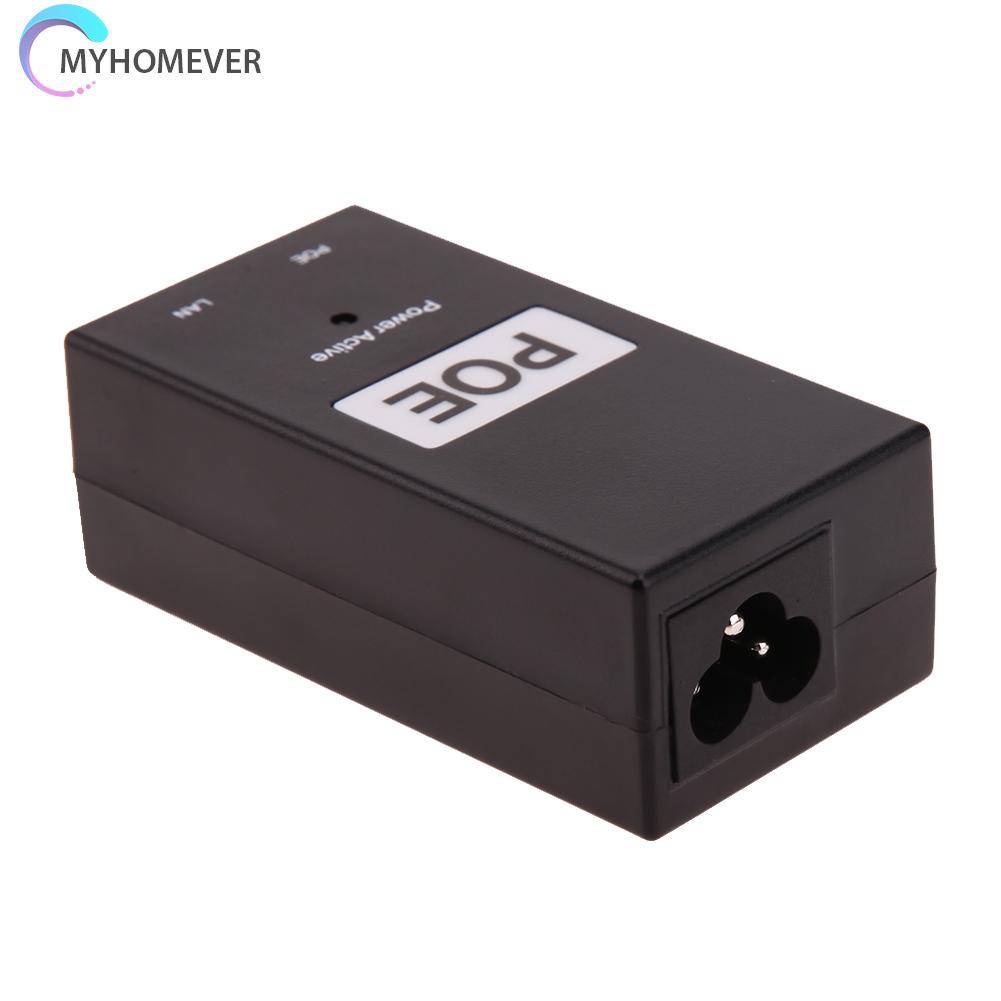

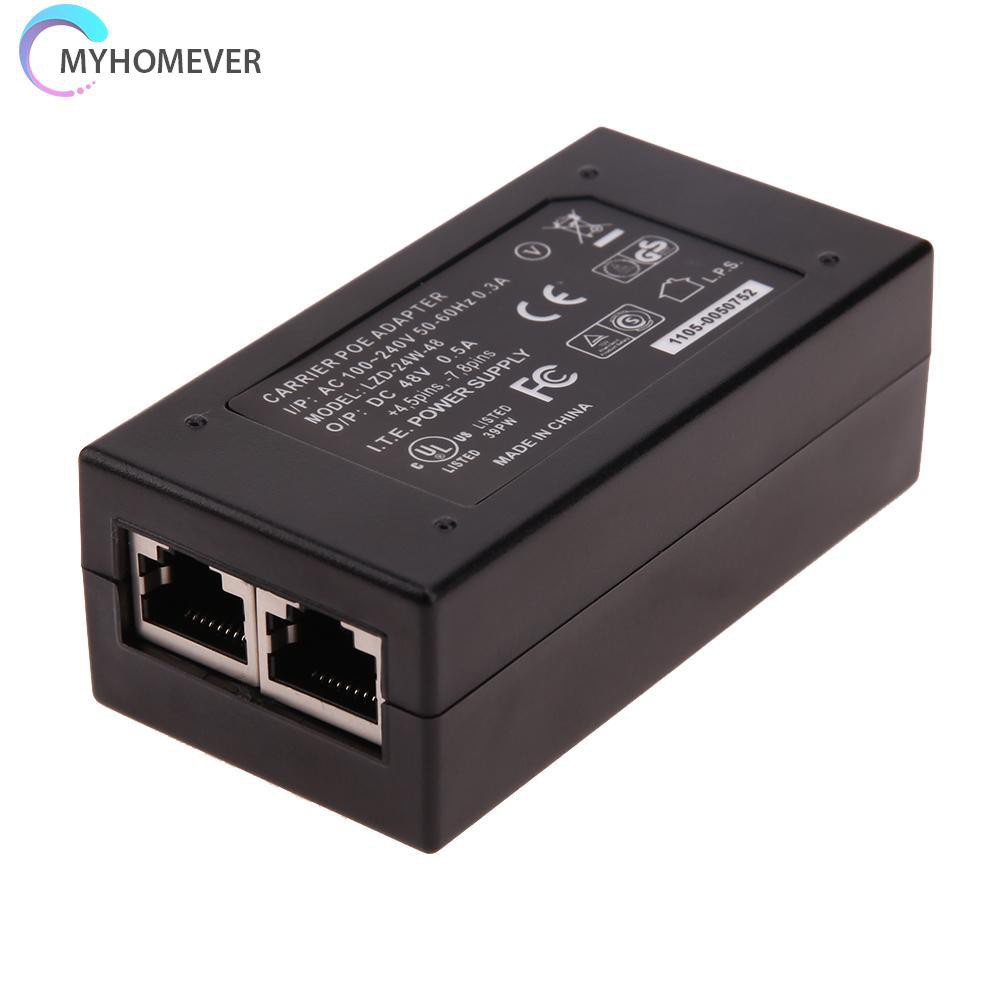

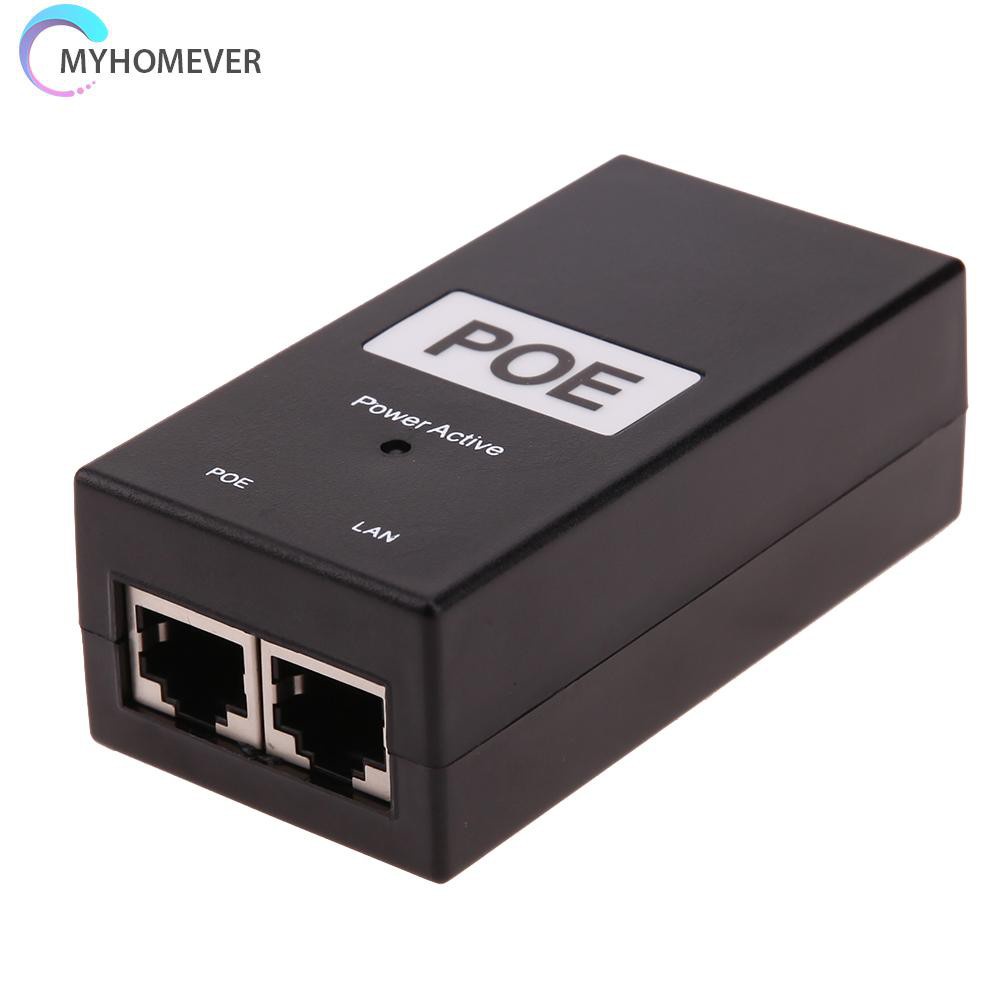

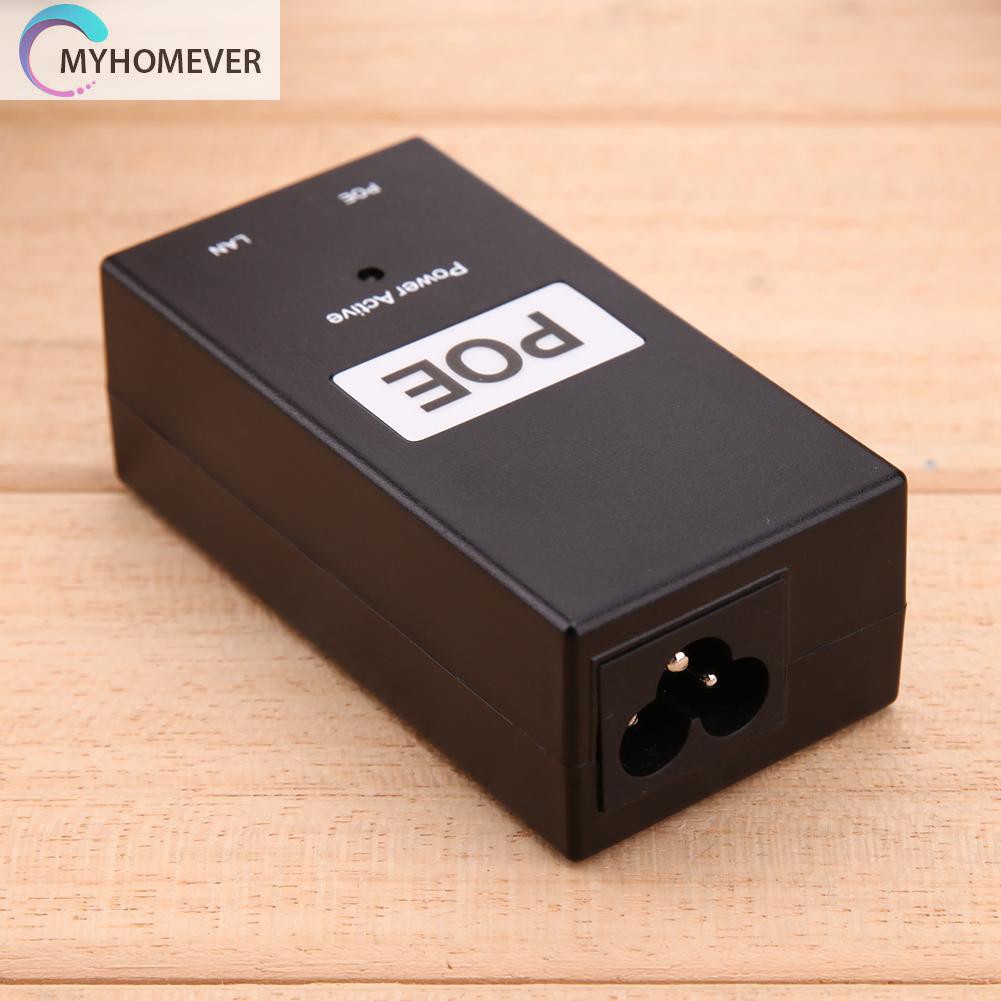

myhomever 48V 0.5A 24W Desktop POE Power Injector Ethernet Adapter Surveillance CCTV

Giới thiệu myhomever 48V 0.5A 24W Desktop POE Power Injector Ethernet Adapter Surveillance CCTV

Dear, welcome to myhomever, here is the latest season's products, you are welcome to choose the purchase, we will give you the best service experience, I wish you a happy day ~ for product details, please go down to see ~

Features:
Compatible with IEE802.3af/at.POEprotocol.
Standard PD port power supplypriority function.
Forwarding Rate:10/100BASE-TX:148800pps/port
Short circuit, over-current, and over-voltageprotection
System reliability: MTBF>100k hours
EN55022 and CLASS B standard CE, RE.
Anti-thunderdesign, bearing positive and passive 5KB, 8/20uS electric shockwave up to 5times for every minute.
Failurealert function and FUSE.

Specification:
Input Current: 100V-240V AC,47-63Hz
Max Input Power:12-48W
Input Stabilivolt Accuracy:-48V DC±2%
Load Adjustment Rate: -48V DC±2%
DC Output Broadband NoiseVoltage: 3.4kHz-150kHz≤50m

Operate Environment:
Temperature: -5 to 55℃
Relative Humidity: 5%-9%RH
Ventilate, clean, no conductivedust or corrosive gas.
No danger of explosion

POE Power Protect:
Output overvoltage Protect: -52V~-50VDC
Overcurrent Protect (singlecircuit): 500Ma-1000Ma
Overvoltage Protect: InputVoltage > 290V-310V AC
Overvoltage Recovery Point:Input Voltage > 240V AC
Undervoltage Protect: InputVoltage < 140V-155V AC
Undervoltage Recovery Point:Input Voltage < 100V AC
Temperature Protect: >100℃

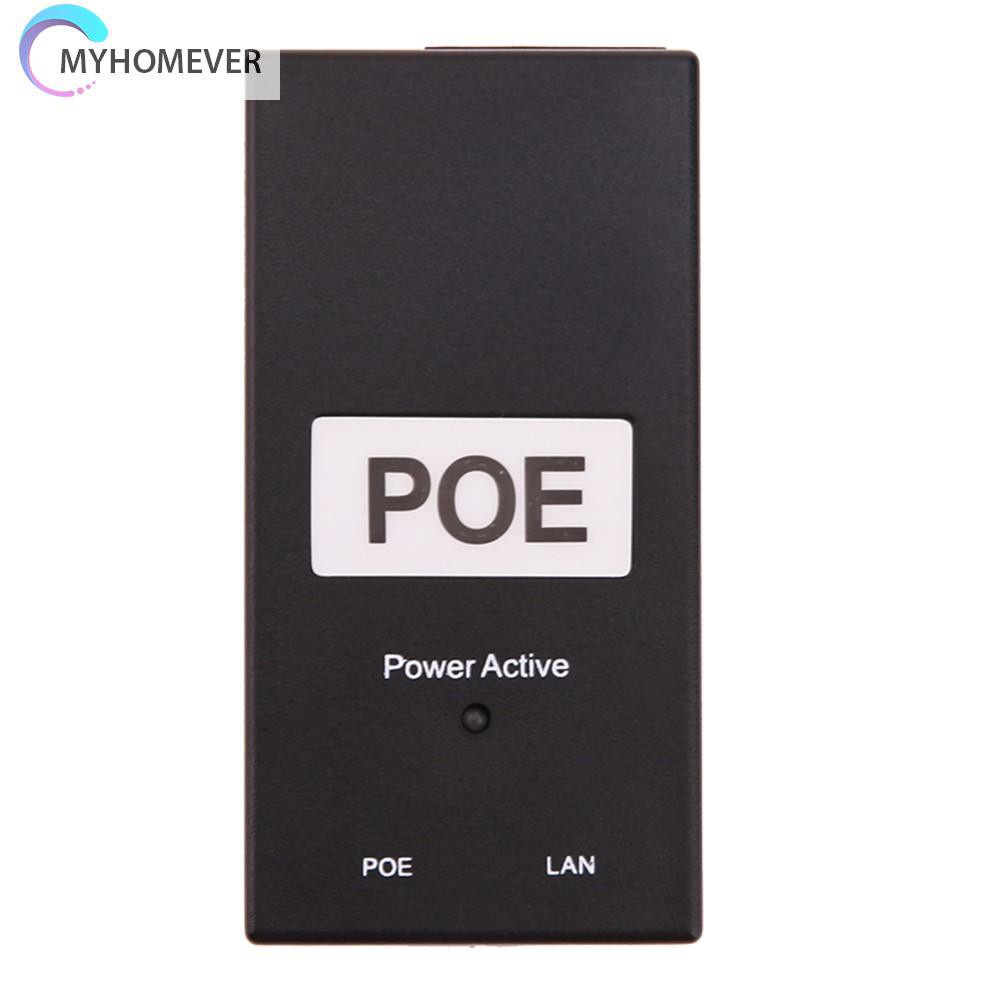

Indicator Light:
Light On: Working
Light Off:
Short circuit or overload protection.
Consumer power is too high.
Consumer breakdown.
Cable short circuit.


Included:

1 X POE Power
